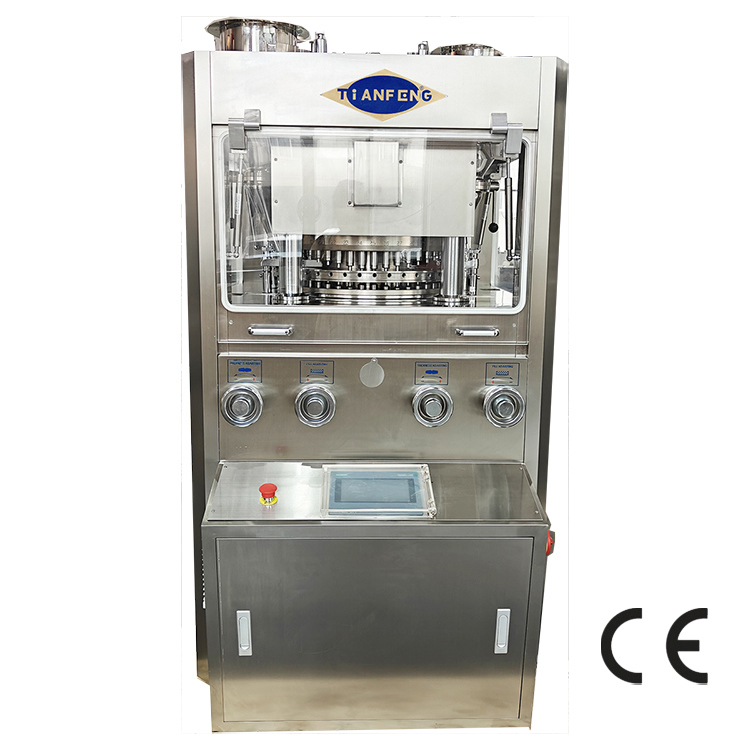

Customizable Rotary Tablet Press Machine ZP45A for Different Tablet Shapes and Sizes

ZP-45A ZP-41F Rotary Tablet Press Machine

Automatic Tablet Press Machines from Shanghai Tianfeng are based upon a proven design . This is due to its robust construction and durability, having a maximum compression force of 100kN.

Product Description:

Main Working principles:

1. The cover of this tablet press machine is made of stainless steel with close type. The inner tablet surface is also made of stainless steel materials which could keep surface luster and prevent from cross pollution, meets GMP requirement.
2. The compression area is enclosed with transparent organic glass. Through the transparent protective cover can see the mechanical operation of the situation clearly, and can open all of them, easy to cleaning and maintenance.

3. Mechanical and electrical integration, variable speed operation.

Features:

• User-Friendly Operation: Supports button-type frequency conversion speed control and PLC touch screen control (optional), meeting different levels of operational needs.
• Efficient Lubrication: Equipped with an automatic oil lubrication system. The grease lubrication system is semi-automatic and requires manual pressing.
• Superior Material: The standard rotary table middle mould plate is made of high-strength OT-500-7 material. Corrosion-resistant 2Cr13 stainless steel material is available as an option.
• Stable Operation: The upper track adopts a high-strength, wear-resistant dual-track design. The parallel rails are fully enclosed and equipped with anti-breakage and anti-drop punch plates, offering good rigidity and excellent dust prevention.
• Contamination Prevention Design: The upper punch of the mould is designed with an oil collection groove. When equipped with an oil collection ring, it effectively collects oil stains and contaminated powder, ensuring tablet cleanliness.

•

• Technical parameter:

  Model	ZP-45A	ZP-41F
  Dies (sets)	45	41
  Max. Pressure (KN)	100	100
  Max. dia. of tablet (mm)	13(special 16)	16(special 22)
  Max. Depth of fill (mm)	15	15
  Max. Thickness of largest tablet (mm)	6	6
  Rotational speed of revolving table(r/min)	14-45	14-45
  Max. Capacity(pcs/h)	243000	221400
  Diameter of rotary table (mm)	460	460
  Diameter of middle bmould (mm)	26	30
  Length of up and low punch pole (mm)	22	22
  Length of the lower punch pole(mm)	115	115
  Dimension (L*W*H)(mm)	910x1220x1670	910x1220x1670
  Motor(KW)	7.5kW 4L	7.5kW 4L
  Net Weight	1950	1950



Applications:

The Tianfeng Rotary Tablet Press Machine is a versatile and reliable piece of equipment designed for various product application occasions and scenarios. With models available such as ZP45A,ZP41F, this automatic pill Press Machine is perfect for pharmaceutical companies, nutraceutical manufacturers, and chemical industries.

Thanks to its high capacity tablet Press Machine capabilities, the Tianfeng Rotary Tablet Press is ideal for large-scale production runs where efficiency and consistency are paramount. Whether you are producing vitamins, medications, or industrial tablets, this rotary Tablet Press ensures precision and quality in every pill.

Manufactured in Shanghai, China, this product is CE/ISO certified, guaranteeing top-notch quality and performance. The minimum order quantity is 1 unit. Flexible payment terms including L/C, T/T, and Western Union make the purchasing process convenient for buyers.

With a supply ability of 50 units per month, customers can rely on timely delivery within 45 working days. The packaging details include export wooden case or plywood case to ensure the safe transportation of the Rotary Tablet Press Machine to its destination.

Whether you need to upgrade your current tablet production line or start a new manufacturing venture, the Tianfeng Rotary Tablet Press Machine is the perfect solution. Its efficient operation, sturdy build, and user-friendly design make it a valuable asset for any production facility.

Packing and Shipping:

Product Packaging and Shipping:

Our Rotary Tablet Press Machine is carefully packaged to ensure safe delivery to our customers. The machine is securely wrapped in protective materials to prevent any damage during transportation. Additionally, the package is labeled with handling instructions and product information for easy identification.

For shipping, we partner with reliable courier services to deliver the Rotary Tablet Press Machine to your doorstep in a timely manner. You can track your shipment using the provided tracking number to know the status of your delivery.
